Bruton Big T Machine (Rebuilt)

Bruton Big T Machine (Rebuilt)
Product Code: B BBT
Unit: Each
Availability: In Stock
SKU: B BBT

Available Options


PACKING BOX:


   - OR -

REBUILT (Made to order)

BRUTON BIG 'T'

Introduction

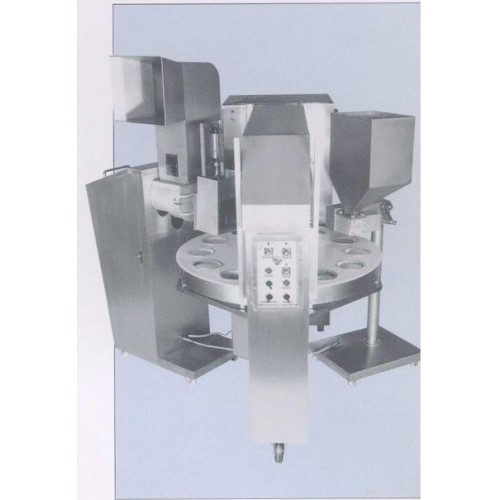

The Bruton Big 'T' Modular Rotary Pie Machine is designed for maximum output with minimum setting time whilst utilising the minimum amount of floor space.

The Machines versatility and volume is what makes it unique. It has the capability of producing in hoops, foils, tins or plastic containers, ranging from 2in diameter (50mm) up to 8in diameter (203mm) and producing a large range of products such as pork pies, tart cases, quiches, etc.

Clad in food quality stain­less steel the Bruton Big Modular 'T' Rotary Pie Machine will take you into the 21st century.



Maintenance

The Bruton Big 'T' Modular Rotary Pie Machine is easily accessible for main­tenance. Simple hood removal will give immediate access to the top of the machine and removal of the stainless steel inspection covers allow for simple maintenance to the back of the machine. All electrical and pneumatic parts can be obtained from local stockists.



Die Change Over

With only two dies to change over the Big 'T' can be changed from one product to another within fifteen minutes. This can be carried out by the operators themselves with the minimum amount of training.



Cleaning Down

Simply ensure the machine is electrically isolated and that the die-­heater sockets are attached to the parking adaptors (to avoid blowing the heaters). The machine can then be cleaned by hosing or any standard method.



Advantages of a Bruton Soft Filler Unit

High Volume

Minimum Space

Hygienic Quick

Change Over

Product Versatility

Production Versatility Mobile



Guarantee

All new equipment supplied will carry a six month parts and rtb labour warranty.



Product Range Production Rate Examples:

2oz (56gms)

Single Formation  -  Up to 1,800 per hour

Twin Formation   -  Up to 3,600 per hour

4oz (113gms)

Single Formation  -  Up to 1,800 per hour

Twin Formation  -   Up to 3,600 per hour

11b (256gms)

Single Formation  -  Up to 1,200 per hour

Sin (203mm)

Quiche

Up to 1,200 per hour



Specifications

Finish:

Food Quality Stainless Steel

Electrics:

Three Phase, 415 Volts, transformed to 24 Volts. (Fitted with DC Injection Brake)



Height: 175cm

Width: 125cm (including Table Ring

Length: 200cm

Air Supply: 80 P.S.I. (50 C.F.M.)

Weight: 950kgs (approximately)



BIG T YOUTUBE VIDEO

Big T Pie Machine + Depositor Youtube Video

pdficonBRUTON BIG T-HANDBOOK MANUAL
